Seen on: 600 Series, later control
EC 40: Excessive Freezer Compressor Run
EC 40 means the freezer compressor on a later 600 Series ran too long to hold temperature. The cause is usually airflow: a door or drawer not closing, a matted condenser, a stalled fan. Sub-Zero Repair Redmond reads the stored codes and fixes the cause; call (425) 905-2822.
| Means | The control logged a freezer compressor run long enough to count as a fault, and stored it for Diagnostic Mode. |
|---|---|
| Check first |
|
| Needs a technician |
|
Why the compressor ran long

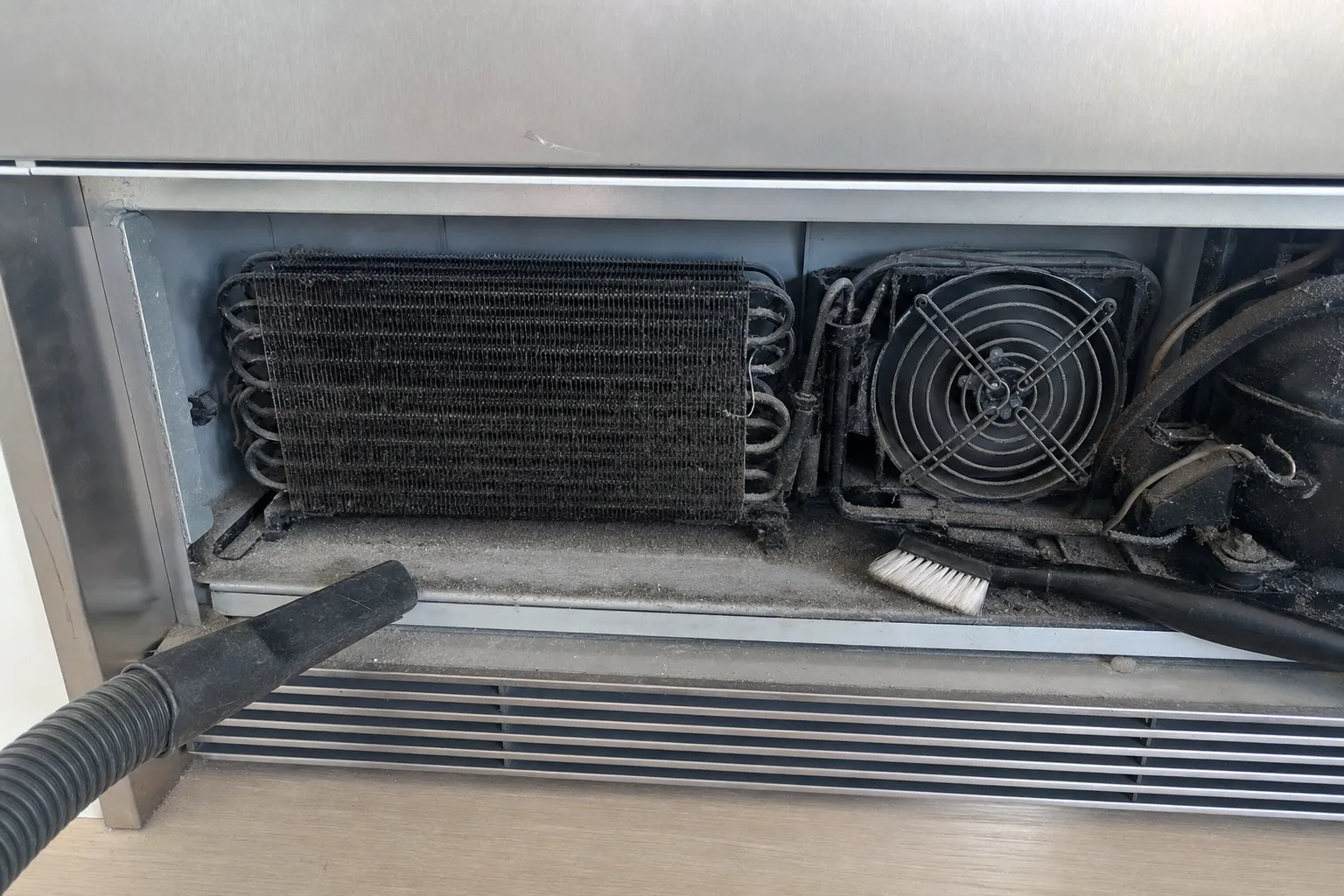

The freezer compressor on a 600 Series runs until the freezer sensor reads cold enough. Anything that stops the freezer getting there keeps it running: warm air through an unsealed door, heat that cannot leave a dusty condenser, or cold air a stalled fan is not moving across the coil.
Sub-Zero’s service manual works through it in that order — door, condenser, fans, sensor, lights — and only then the sealed system. It also sends the technician to any defrost or freezer-sensor code stored alongside EC 40 first, because those can cause it.
What the display shows meanwhile
Often just a flashing SERVICE light and a freezer a few degrees warm. The code is read from the keys in Diagnostic Mode.
Asked on the phone
- Can I clear EC 40 myself?
- Only after the cause is fixed. The service manual clears stored codes by holding the door-alarm bell key for fifteen seconds with the unit on, but a cleared code simply returns if the condenser or a fan is still at fault. Sub-Zero Repair Redmond, (425) 905-2822, finds the cause first.
EC 40 on your display?
Sub-Zero Repair Redmond · $89 service call, deducted once the repair goes ahead · on site 0800 to 2000 hrs, all seven days
