Lights On, No Cooling: Showroom Mode

Showroom mode lets a Sub-Zero light up and run its display for a sales floor without cooling. On a BI it can show 38° and 0° on a cabinet that is warming; a later 600 Series shows Sr in Diagnostic Mode. Call Sub-Zero Repair Redmond on (425) 905-2822 and describe the display before booking a visit.

Sr at a glance — Sub-Zero Repair Redmond, (425) 905-2822
Means The control is set for display duty: lights and readout work, and the unit does not cool. A setting rather than a failed part.
Check first
  • On a BI, 38 and 0 in the display while a thermometer inside reads warm.
  • Whether the unit spent time on a sales floor or in a model home.
  • Doors closing fully and the condenser clean, since those also leave a cabinet warm.
Needs a technician
  • Sr confirmed in Diagnostic Mode on a later 600 control, then the exit sequence.
  • On a BI, the mode confirmed at the control and taken off.
  • An ordinary cooling fault traced if the mode turns out not to be the cause.

How it looks

The panel behaves normally, the lights come on, and nothing gets cold. Sub-Zero’s BI guide describes exactly that picture: 38° and 0° in the display, and a unit that is not cooling. The early 600 service manual lists the same mode among its causes of warm compartments.

On a later 600 Series

Sr turns up among the readings in Diagnostic Mode when the control is set this way. The service manual’s way out is a key sequence at the Control Center: switch the unit to OFF with UNIT ON/OFF, then hold a WARMER and a COLDER key together and press UNIT ON/OFF.

Where it comes from

The mode exists for sales floors, so it is most likely on a unit that spent time on display or in a model home; the early 600 manual even gives those units their own warranty terms.

If it is not the mode

A warm cabinet with a normal display and no Sr is an ordinary cooling fault, and it is diagnosed as one.

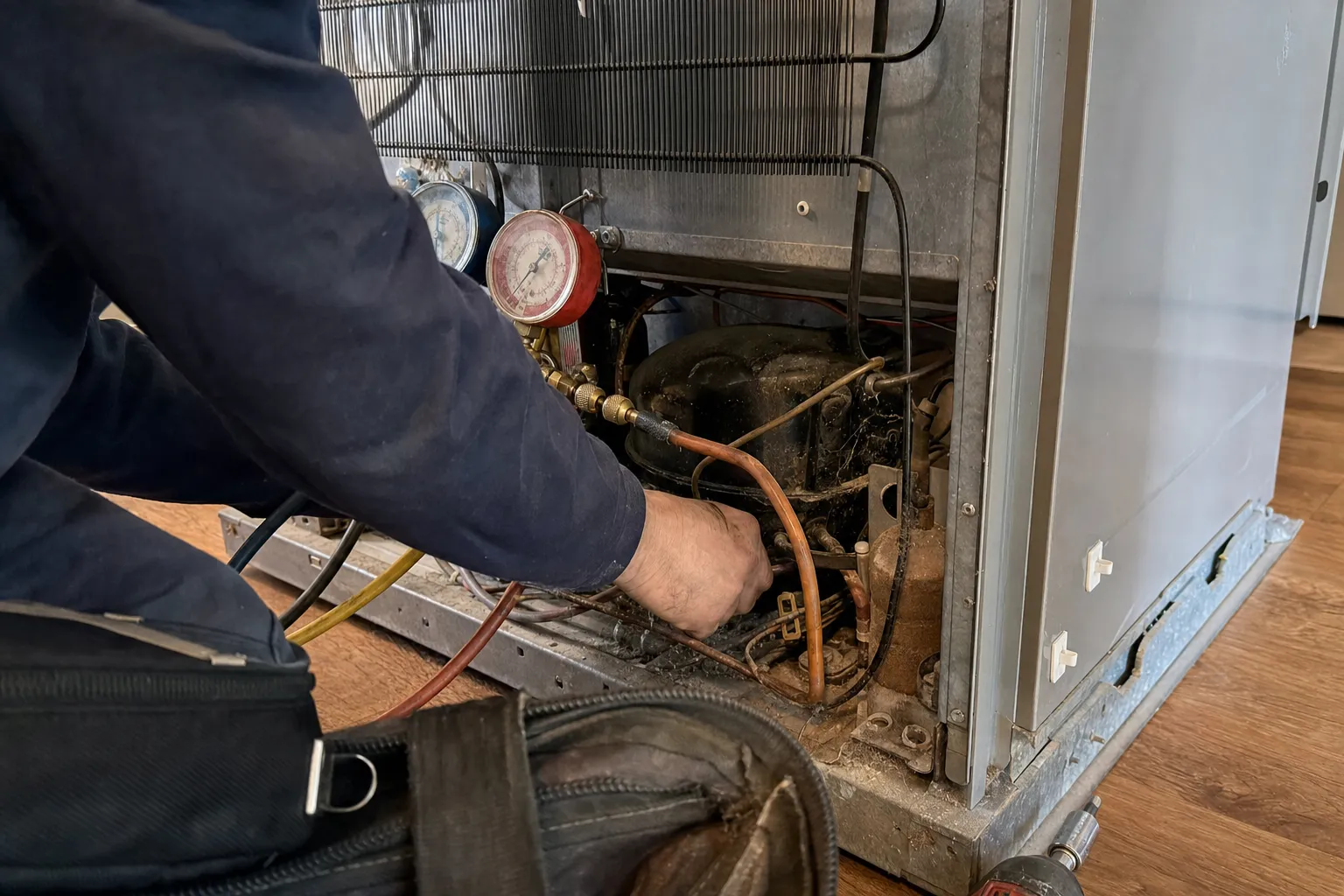

Pressure gauge and charging hoses connected at the compressor in the lower back of a refrigerator, condenser coil above
